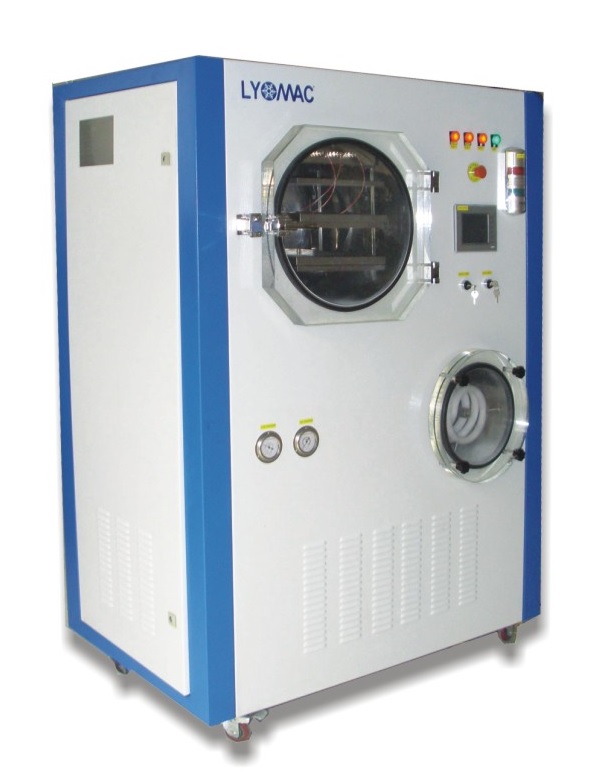

Laboratory Freeze Dryer

Model: LM-0.6

Ideal for Process cycle  development, researching in lab!

Mainly applied for freeze drying process research and development, as well as test process data before commercial production.

The Ice capacity 10 kg, For common refrigeration system, the lowest temperature of shelves can reach to -40 ℃, and condenser with -50 ℃. With cascade refrigerant system the shelf can lower than -50 ℃, while condenser lower than -70℃. It can apply for wider product freeze drying. With DYNAMIC design, and four wheelers on the base frame, the machine is easily used in most of environment.

Features:

DYNAMIC design, reliability running under high performance;

Vacuum or air filled stoppering;

Eutectic device detector are available;

Easily inspect with fully organic glass chamber door;

Control system designed with multi-recipe, user can choose different recipe for test freeze drying process;

Minimum utility-only the electrical power is required;

User can easily handle all the maintenance and operation in any case;

Drying capacity: 10 kg

Shelf area: 0.60 m2

Shelf size: 500L * 300W * 13T mm

Useable Shelf No.: 4

Vial loading quantity: Φ16: 2460; Φ22: 1300

Inter. Shelf distance *: 100 mm

Shelf ultimate cooling temperature (air/water/cascade cooling system): -45/-50 /-60⁰C

Condenser ultimate cooling temperature (air/water/cascade cooling system):   -50/-70 /-80⁰C

Ultimate vacuum: ≤ 2.0 Pa

Installation dimension: 1400L * 1200W * 1800H mm

Weight: 600 kg

Power: 8 kw

Customer option:

Cascade refrigeration system, ice condenser can reach to -80℃

Eutectic point detector

Inter-shelf distance adjust mechanism

Vacuum or air filled stoppering (with pressure adjustable, upward or downward direction)

Air/water cooling refrigeration system

Auto moisture judgment on control system

CIP/SIP

Organic glass/stainless steel door
