Giá: Liên hệ
Models:5316-xxxx; Buerkle / Germany
Giao hàng: Đặt hàng
Lượt xem 114

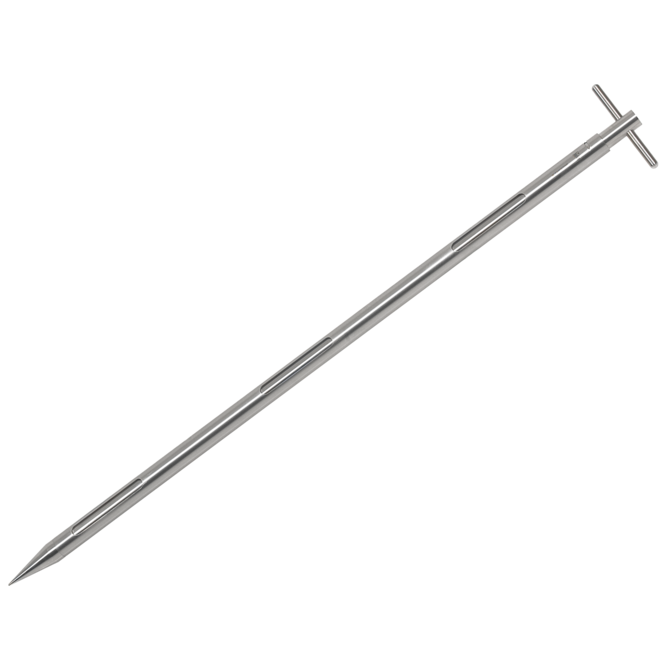

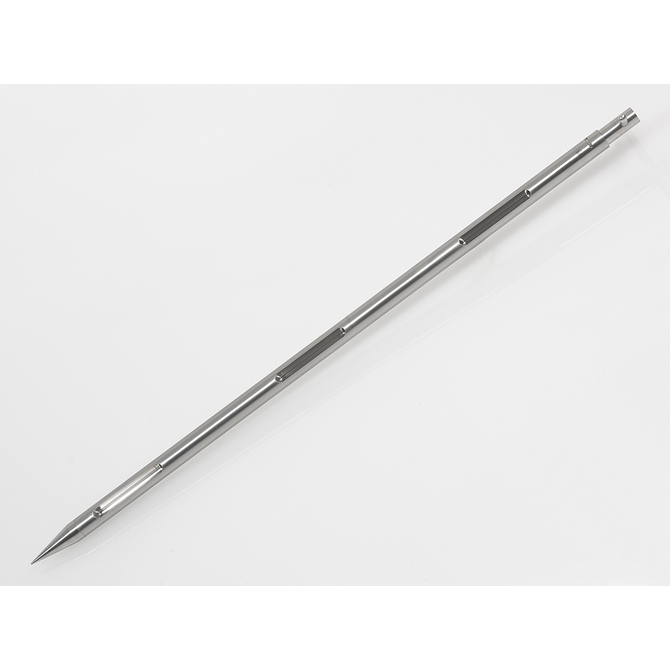

Dụng cụ lấy mẫu đa năng
Mã đặt hàng: 5316-3085
Hãng sản xuất: Buerkle / Germany
Xuất xứ: Đức
Làm bằng thép không gỉ V4A (1.4404)
Đường kính Ø 25mm
Chiều dài: 85 cm
Chiều sâu lấy mẫu: 710mm
Số ngăn gom mẫu: 3
Thể tích ngăn mẫu: 17ml
| Zone samplers for all kinds of bulk goods | ||||||
| Buerkle - Germany | ||||||
| Xuất xứ: Đức | ||||||

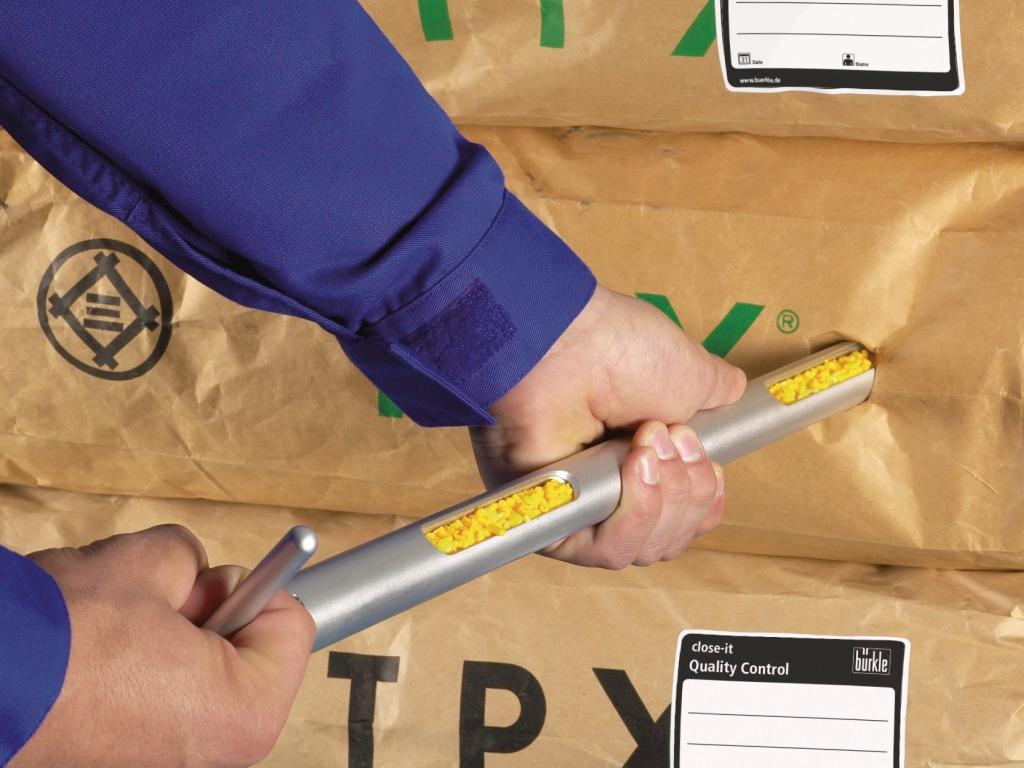

| Bürkle zone samplers are used for taking samples of bulk goods of any kind. | ||||||
| The big advantage of zone samplers is that all-layer samples can be collected from all layers of the container. | ||||||
| Various bulk goods can be collected with the lances, from the finest powder to large grains such as corn or nuts. | ||||||
| The zone samplers are available in different lengths. | ||||||
| 55 cm (only Multi, Uno and All-layer sampler) especially suitable for sacks, 85 cm long (especially for barrels, tubs, mixed containers) and 150 cm as well as 250 cm (only Jumbo sampler) for big bags, silos, tanks. | ||||||
| Safe and reliable sampling is made even easier with useful special accessories such as sealing sleeves, | ||||||
| Quali-Paper, cleaning brushes, emptying devices and close-it control seals. | ||||||
| The zone samplers are available in different models for different sampling tasks. | ||||||
| * Smallest possible gap between the inner and the outer tube | ||||||
| * Easy cleaning, removable tip | ||||||
| * Colour coding (Multi and Uno sampler) | ||||||
| * Ultra-pure materials | ||||||
| * Excellent processing, robust model | ||||||
| All layer sampler (các ngăn chứa mẫu không tách biệt) | ||||||
| * All-layer sampler, with open inner tube, no separate chambers, and large sampling volume. For all-layer samples through all the layers of the sample. | ||||||
| * Aluminium or AISI 316L (1.4404) | ||||||
| * 25 mm Ø | ||||||
| * Corresponds to ISTA standard for seed lengths of 10 mm (wheat, oats) and 5 mm (flax, vetches). | ||||||
| Material | Total length, cm | Insertion depth, mm | No. of openings | Chamber volume, ml | Item no. | Price, VND |
| Aluminium | 55 | 430 | 3 | 70 | 5317-2055 | |
| Aluminium | 85 | 710 | 3 | 130 | 5317-2085 | |
| Aluminium | 150 | 1355 | 5 | 260 | 5317-2150 | |
| AISI 316L | 55 | 430 | 3 | 70 | 5316-2055 | |
| AISI 316L | 85 | 710 | 3 | 130 | 5316-2085 | |
| AISI 316L | 150 | 1355 | 5 | 260 | 5316-2150 | |
| Multi sampler (Các ngăn chứa mẫu riêng biệt) | ||||||
| * Multi sampler with several closed chambers, for multi point sampling from several predetermined sampling depths. | ||||||
| * Aluminium, AISI 316L (1.4404) or AISI 316L/PTFE | ||||||
| * Version made of AISI 316L (1.4404)/PTFE with low weight due to PTFE sample chambers. | ||||||
| * With colour coding system | ||||||
| * 25 mm Ø | ||||||
| Aluminium | 55 | 430 | 3 | 14 | 5317-1055 | |
| Aluminium | 85 | 710 | 3 | 17 | 5317-1085 | |
| Aluminium | 150 | 1355 | 5 | 17 | 5317-1150 | |
| AISI 316L | 55 | 430 | 3 | 14 | 5316-3055 | |
| AISI 316L | 85 | 710 | 3 | 17 | 5316-3085 | |
| AISI 316L | 150 | 1355 | 5 | 17 | 5316-3150 | |
| AISI 316L/PTFE | 55 | 430 | 3 | 14 | 5316-0055 | |
| AISI 316L/PTFE | 85 | 710 | 3 | 17 | 5316-0085 | |
| AISI 316L/PTFE | 150 | 1355 | 5 | 17 | 5316-0150 | |
| Uno sampler (Một ngăn chứa mẫu) | ||||||
| Uno sampler made of stainless steel AISI 316L (1.4404)/PTFE with a closed sample chamber for point sampling from a predetermined sampling depth. | ||||||
| * Outer tube stainless steel AISI 316L (1.4404), sample chambers made of PTFE | ||||||
| * With colour coding system | ||||||
| * 25 mm Ø | ||||||
| AISI 316L/PTFE | 55 | 430 | 1 | 17 | 5316-0055 | |
| AISI 316L/PTFE | 85 | 710 | 1 | 17 | 5316-1085 | |
| AISI 316L/PTFE | 150 | 1355 | 1 | 17 | 5316-1150 | |
