Dụng cụ chia mẫu | |||||||
Hãng sản xuất: Haver - Germany | |||||||

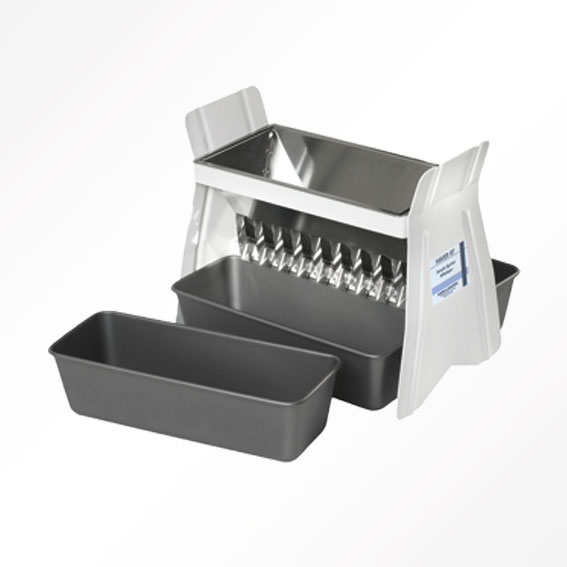

Representative test samples can be easily and reliably produced with HAVER Sample Splitters. | |||||||
These sample reducers form two representative partial quantities by means of alternately arranged dividers. | |||||||
They are available in two different sizes and with different sized dividers depending on the product. | |||||||
Your advantages at a glance | |||||||
Representative test samples. | |||||||
The smooth surface of plastic laminated receivers prevents cross contamination. | |||||||
Easily and low costly sample division. | |||||||
Technical data | |||||||
RT 75 | RT 50 | RT 37.5 | RT 25 | RT 12.5 | RT 6.3 | ||
Openings [mm] | 75 | 50 | 37.5 | 25 | 12.5 | 6.3 | |
Divisions | 6 | 8 | 12 | 16 | 18 | 12 | |
Max. Material feed size (mm)* | approx. 50 | approx. 33 | approx. 25 | approx. 16 | approx. 8 | approx. 4 | |
Receiver volume (Litre) | 8 | 8 | 8 | 8 | 1.7 / 2 | ||
Divider material | galvanized sheet steel | stainless steel | |||||
Dimensions [mm] | 620 x 260 x 420 | 300 x 250 x 270 | |||||
Đơn giá (VND) | |||||||
Application examples for HAVER Sample Splitters | |||||||
Industrial rocks and minerals | |||||||
Ceramic | |||||||
Granulates | |||||||
Fertilizer and seed | |||||||
Mode of operation | |||||||
The divider consists of a number of alternatively arranged partitions with openings at the top and at the bottom. | |||||||
The material is collected in alternate receivers. | |||||||
The main advantage of the apparatus is that the sample is divided over the whole "corss-section". | |||||||
The material has to be distributed regularly over the whole length of the sample splitter. | |||||||
In general, the grater the number and the smaller the divisions, the better will be the splitting. | |||||||
However the number of divisions depends on the grain size of the sample material. | |||||||
One of the split samples is rejected. The other may be split again and again by the same operation until | |||||||
the required quantity for test sieving is achieved. |
